A1200 Real Time Clock + Sensors Module for Commodore Amiga 1200 Clockport
A1200 Real Time Clock + Sensors Module for Commodore Amiga 1200 Clockport
Regular price
£24.99 GBP
Regular price
Sale price
£24.99 GBP
Unit price
per
Tax included.
Couldn't load pickup availability

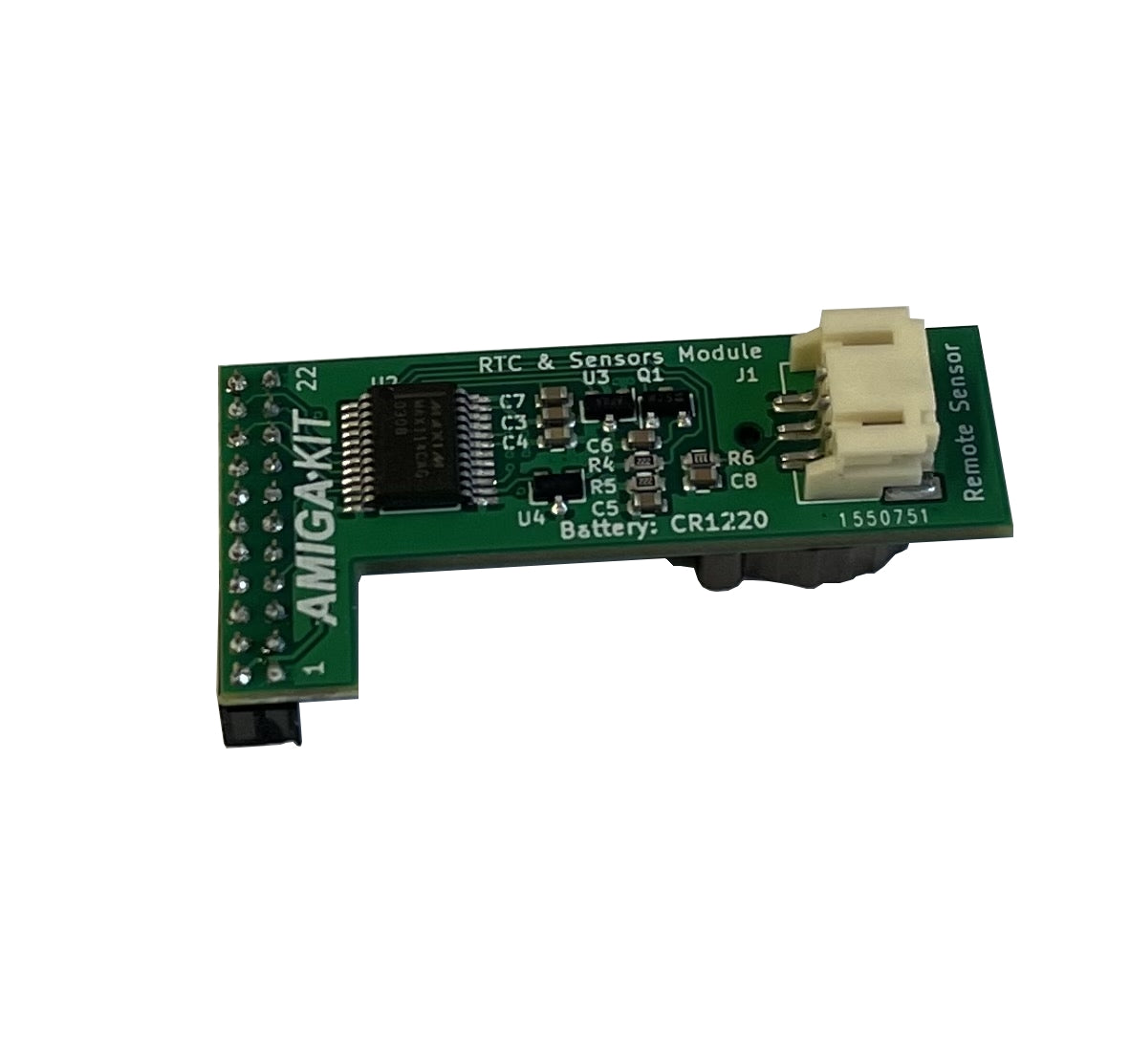

Real Time Clock and Sensors Module for use with Commodore-Amiga 1200 Clock Port ¹ and a wide range of selected expansions.

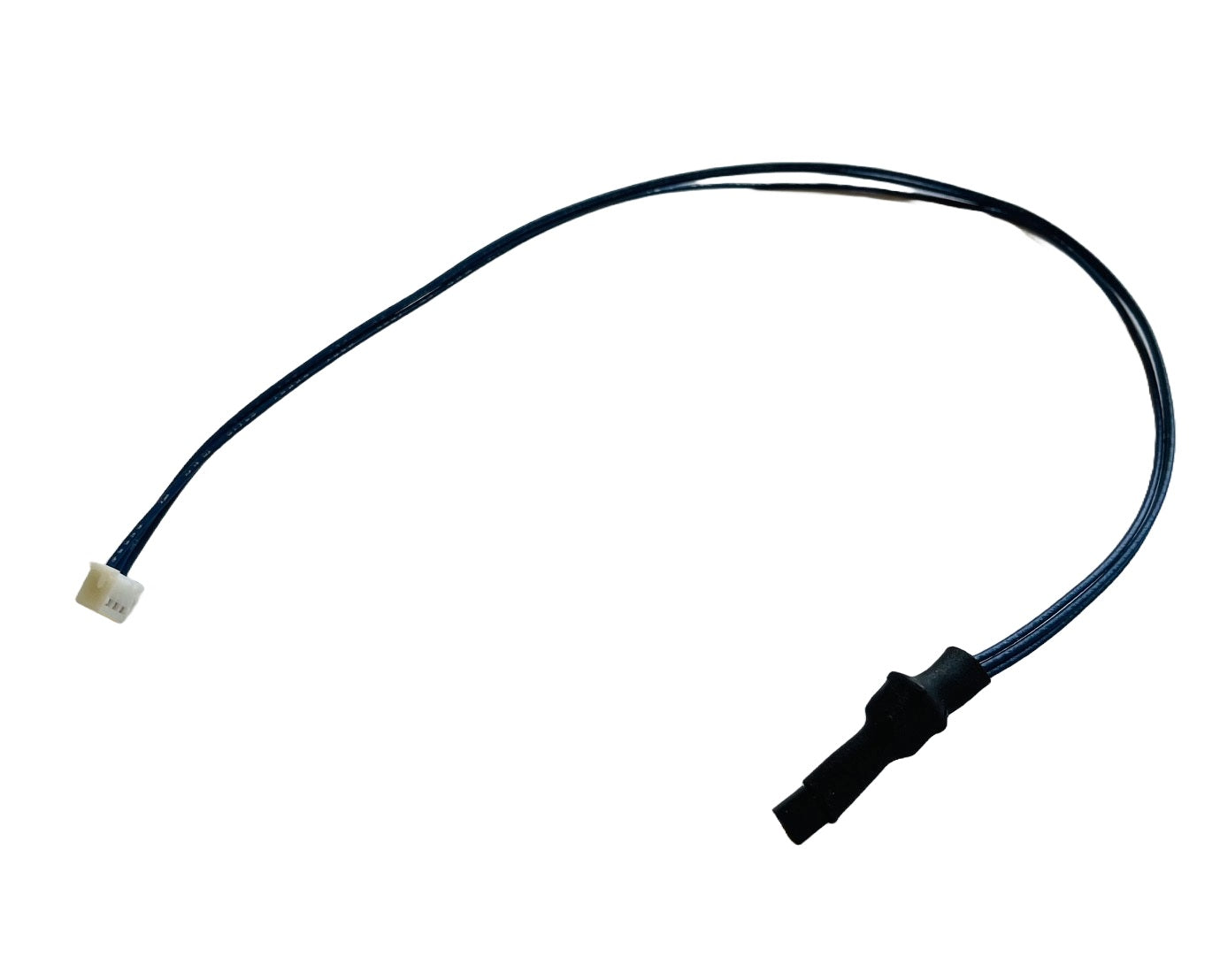

Note: we stock an optional external sensor cable
Features:
✔ Battery backed-up real time clock
✔ Temperature sensor for monitoring your Commodore-Amiga's internal temperature.
✔ 5 volt sensor monitors the stability of the 5v rail.
✔ Socket for an optional plug-in secondary sensor on a cable (Remote Sensor).
✔ Sensor monitors the battery powering the real time clock
✔ The Workbench commodity software to display all the sensor readings in real time can be downloaded from our website.
Compatible with:
✔ Amiga 1200 Clock Port ¹
✔ A600™ Memory Expansion
✔ A1200™ 8MB Memory Expansion
✔ A1200™ 8MB Flash Memory Expansion
The Real Time Clock module's on-board battery ensures that the computer retains the correct date and time even when the system is powered down. Once this module is installed in your computer simply set the correct date and save it using the Time Preferences or SetClock command. After that the Workbench clock will always display the correct time. When files are created or amended on system drives the correct file date and time will be recorded.
The module accepts standard CR1220 lithium coin-cell batteries. Coin-cell battery not included but can optionally can be configured below.
Installation is straight forward: the clock module plugs onto the header pins of a compatible Amiga 1200 motherboard, accelerator or RAM expansion. We can install this onto a compatible accelerator if you purchase them both at the same time and request in the order notes during Checkout.
¹ Amiga 1200 users only: the Clock Port on your Amiga 1200 motherboard should be populated with 22-pins on the right hand side of motherboard location marked P9B . Some rare motherboards had no pins populated so will require them to be added by a qualified technician in order to use this Real Time Clock Module.
The pictured A1200 Flash and A600 expansions products are not included and shown to illustrate how the Real Time Clock and Sensor Module is installed. A1200 is a trade mark of AmigaKit Ltd
Apart from a battery backed up clock this module also has four on board sensors used for monitoring your Amiga in real time using our software.
Features:
✔ Battery backed-up real time clock
✔ Temperature sensor for monitoring your Commodore-Amiga's internal temperature.
✔ 5 volt sensor monitors the stability of the 5v rail.
✔ Socket for an optional plug-in secondary sensor on a cable (Remote Sensor).
✔ Sensor monitors the battery powering the real time clock
✔ The Workbench commodity software to display all the sensor readings in real time can be downloaded from our website.
Compatible with:
✔ Amiga 1200 Clock Port ¹
✔ A600™ Memory Expansion
✔ A1200™ 8MB Memory Expansion
✔ A1200™ 8MB Flash Memory Expansion
The Real Time Clock module's on-board battery ensures that the computer retains the correct date and time even when the system is powered down. Once this module is installed in your computer simply set the correct date and save it using the Time Preferences or SetClock command. After that the Workbench clock will always display the correct time. When files are created or amended on system drives the correct file date and time will be recorded.
The module accepts standard CR1220 lithium coin-cell batteries. Coin-cell battery not included but can optionally can be configured below.
Installation is straight forward: the clock module plugs onto the header pins of a compatible Amiga 1200 motherboard, accelerator or RAM expansion. We can install this onto a compatible accelerator if you purchase them both at the same time and request in the order notes during Checkout.
¹ Amiga 1200 users only: the Clock Port on your Amiga 1200 motherboard should be populated with 22-pins on the right hand side of motherboard location marked P9B . Some rare motherboards had no pins populated so will require them to be added by a qualified technician in order to use this Real Time Clock Module.
The pictured A1200 Flash and A600 expansions products are not included and shown to illustrate how the Real Time Clock and Sensor Module is installed. A1200 is a trade mark of AmigaKit Ltd
